Adjusting the voltage for DC Power Distribution Panel

Adjusting the voltage for DC Power Distribution Panel

Info
Automate DC Motors can operate with our DC Power Distribution Panel. Please ensure the panel and motors are Rollease Acmeda Motors.
Info
The DC Panel has a voltage adjuster/trim pot (see picture below). The trim pot will need to be adjusted to obtain the correct voltage, adjusting the trim pot clockwise direction will decrease the voltage, and counter-clockwise will increase the voltage.


Alert

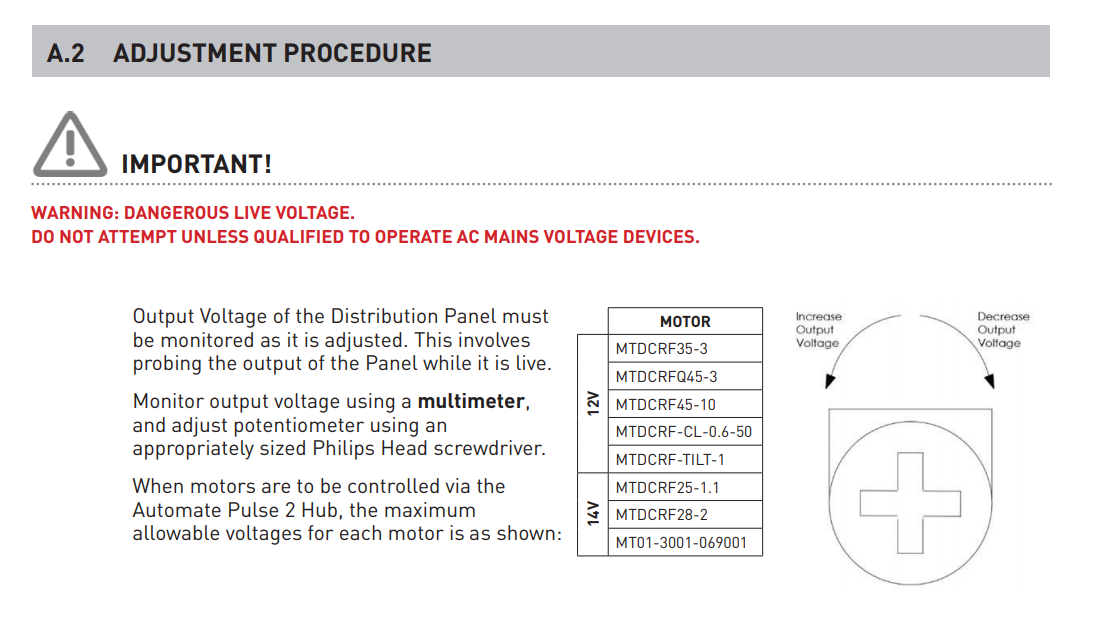

The default voltage is 15V. Adjusting the trim pot is required for the motors to be operational. See the voltages required by each motor below


Please see video below for visual directions:
