Shade Control/Pairing Issues (EL Mode)

Why is my Paradigm remote not controlling or pairing with my shade?

If your Paradigm remote is not pairing with or controlling your shades, it might be in the wrong mode. This article outlines troubleshooting steps to check and resolve this issue.

Paradigm Remote Modes

1. ARC Mode: Controls standard Rollease Acmeda ARC motors. This is the correct mode for most users.
2. EL Mode: Designed for older or other motors.

Note: Switching modes is possible when replacing the battery and can happen if P2 is pressed accidentally.

How do I switch my remote between ARC and EL mode?

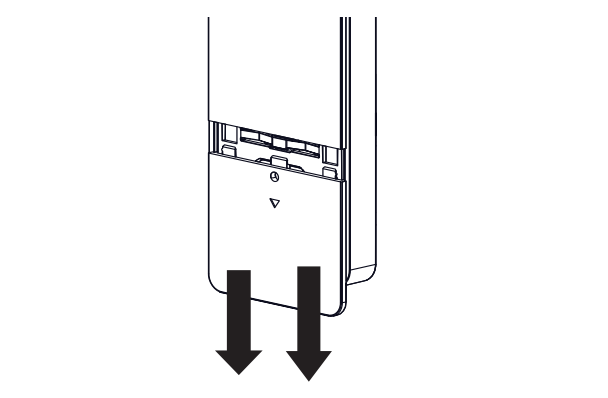

On the back of the remote, remove the cover.

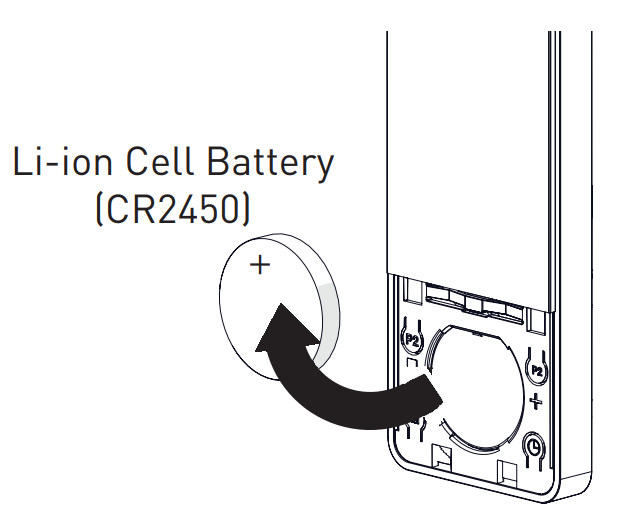

Remove the battery.

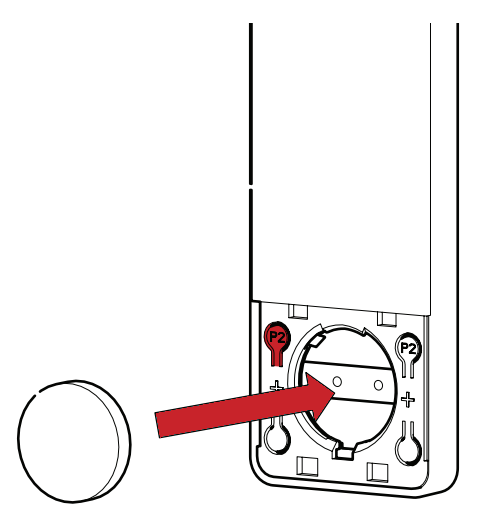

While holding P2, reinsert the battery.

Having trouble? More info....

While holding P2, and when the battery is first inserted, the remote will briefly indicate which mode it is currently in.

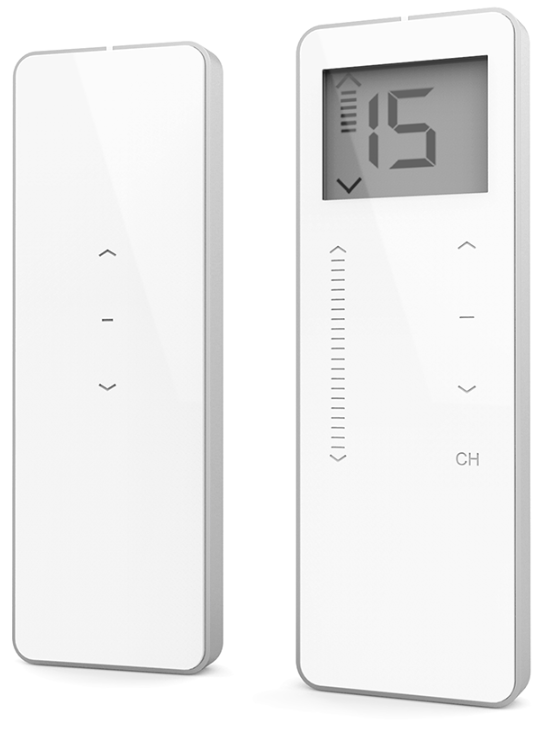

15 Channel Remote

Screen flashes 5 times with one of the following:
Screen flashes 1 = ARC Mode
Screen flashes 2 = EL Mode

Note: After flashing 5 times, the screen will return to channel 1.

Single Channel Remote

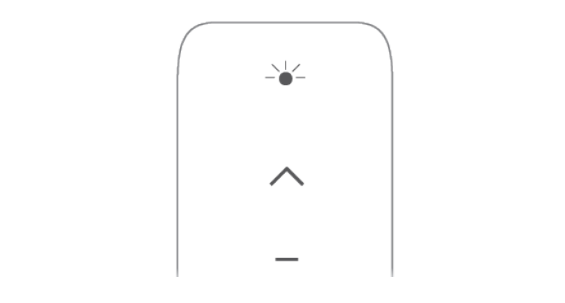

LED blinks briefly with one of the following:
1 blink = ARC Mode
2 blink = EL Mode

Note: After blinking once or twice, the LED will blink continuosly until P2 is released.

Release the P2 button once the battery is secure. Test the remote to see if the remote now controls or pairs with your shade.

Note: If your shade still doesn't respond, try the above steps again.
