Pulse 2 LED Status

Pulse 2 LED Status

The Pulse 2 has a status LED that lets you know the state of the hub at a quick glance

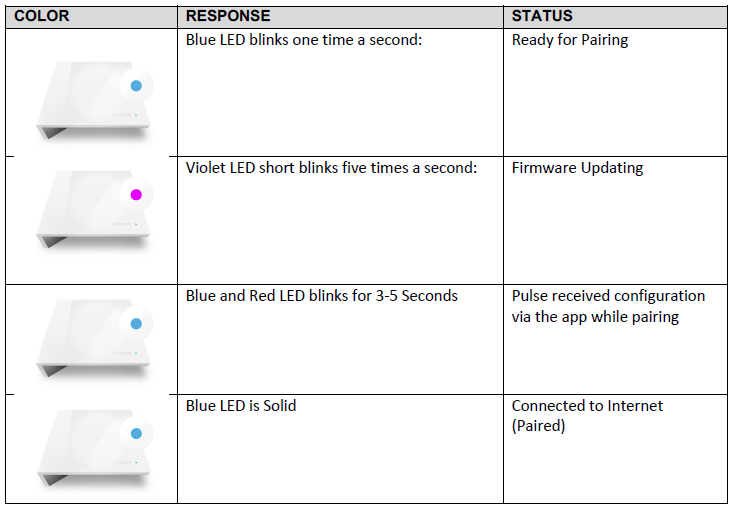

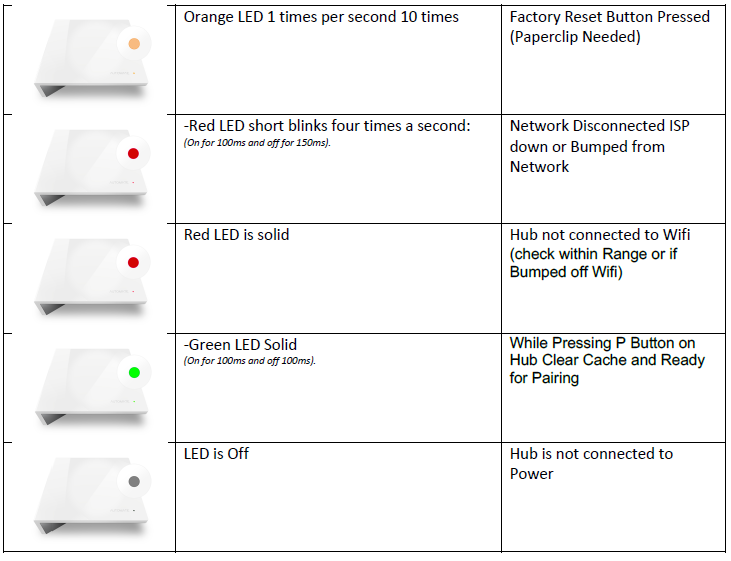

Pulse 2 Status LED Chart
