Pair a Shade - Push Pro

Pair a Shade - Push Pro

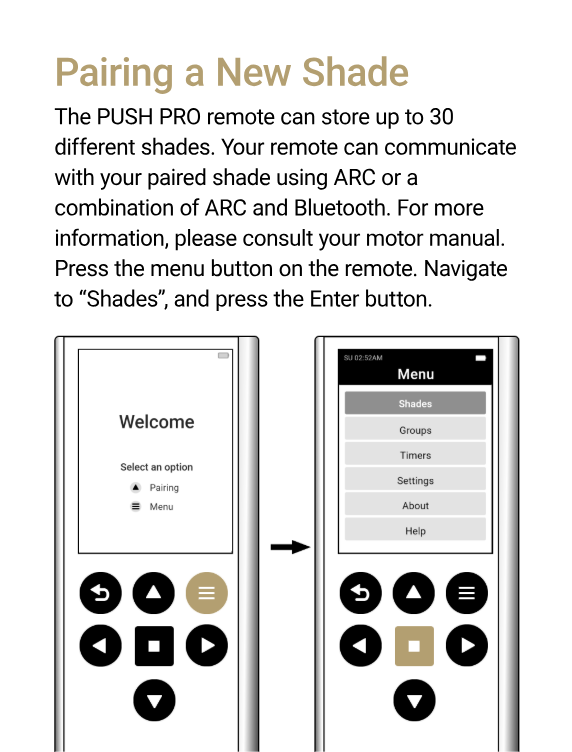

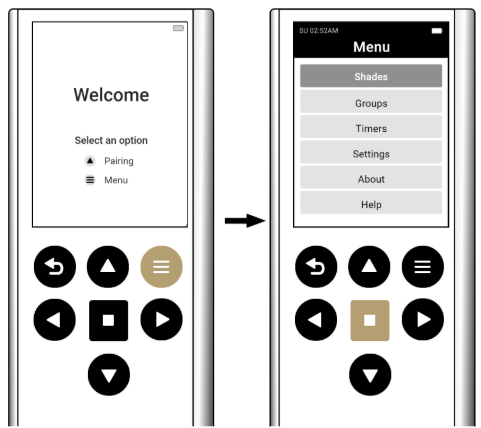

The PUSH PRO remote can store up to 30 different shades. Your remote can communicate with your paired shade using ARC or a combination of ARC and Bluetooth. For more information, please consult your motor manual. Press the menu button on the remote. Navigate to “Shades”, and press the Enter button.

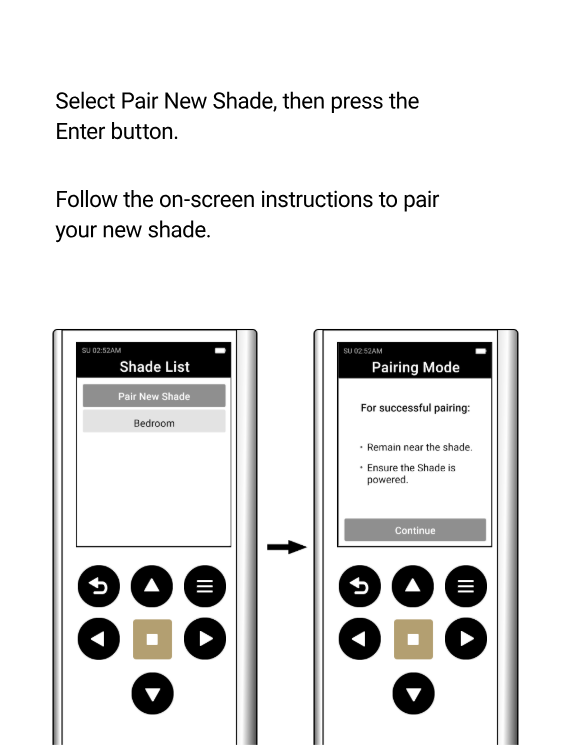

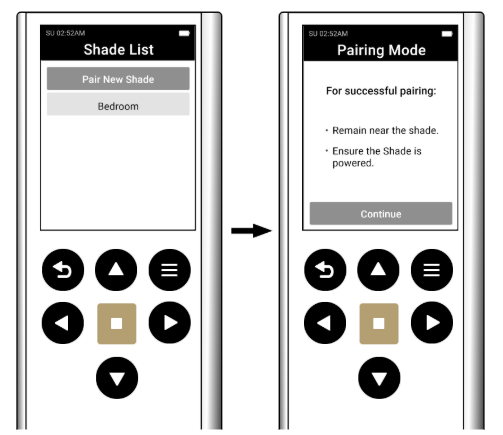

Select Pair New Shade, then press the Enter button.



Follow the on-screen instructions to pair your new shade.


Notes

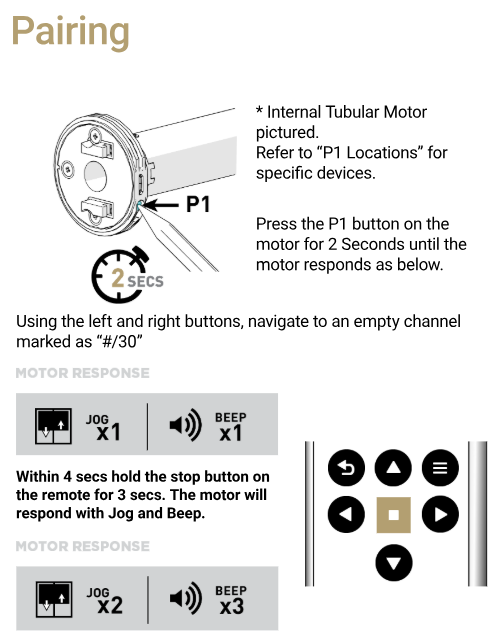

For P1 Button Locations see: Motor (P1) Button Locations & Functions

Change Direction

Press Up or Down to check the motor direction.

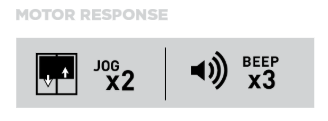

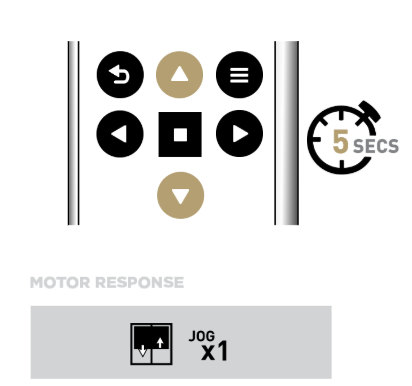

If the shade direction needs to be reversed; press and hold the Up & Down arrow together for 5 seconds until the motor jogs.


Alert
Reversing motor direction using this method is only possible during initial set-up. See How to Reverse Shade/Blind Direction for instructions.

Set Top Limit

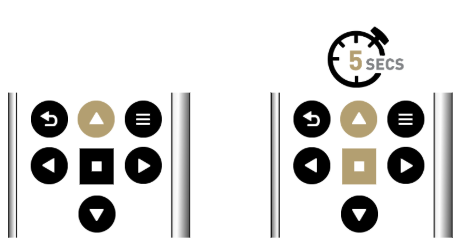

Move shade to desired top limit by pressing the Up arrow repeatedly. Then press and hold Up & Stop together for 5 seconds to save limit.

Tap the arrow several times or hold Down if needed; press arrow to stop.



Set Bottom Limit

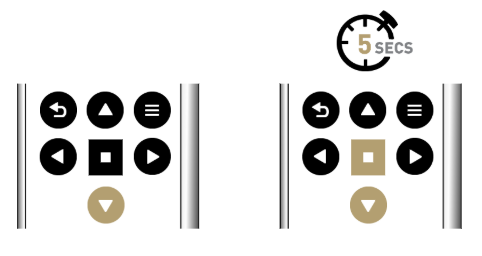

Move shade to desired bottom limit by pressing the Down arrow repeatedly. Then press and hold Down & Stop together for 5 seconds to save limit.

Tap the arrow several times or hold Down if needed; press arrow to stop.





Notes
Note: Pairing a new shade will also guide you through the following setup steps.
  1. Pair a new Shade
  2. Name your Shade
  3. Check/Change the shade’s direction
  4. Set upper and lower limits
  5. Create a group or add to an existing group
